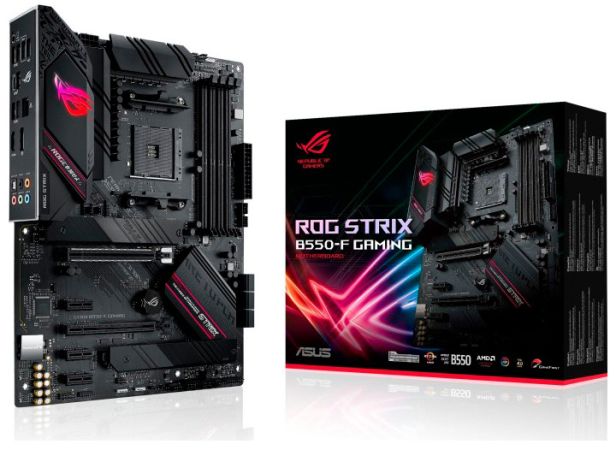

Asus ROG STRIX B550-F GAMING AMD B550 SKAM4

ESPECIFICAÇÕES

• Processador: Socket AMD AM4 3ª Gen AMD Ryzen™
• Chipset: AMD B550
• Memória RAM:
• Processadores AMD Ryzen™ 3ª Geração:
• 4 x DIMM, Max. 128GB 4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered
• Processadores AMD Ryzen™ PRO Próxima Geração:
• 4 x DIMM, Max. 128GB 5100(O.C)/5000(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered
• Arquitetura de Memória Dual Channel
• OptiMem II
• Memória ECC (modo ECC mode) suporta vários CPU.
• Gráficos:
• 1 x DisplayPort 1.2
• 1 x HDMI 2.1(4K@60HZ)
• Slots de expansão:
• Processadores 3ª Ger. AMD Ryzen™
• 1 x PCIe 3.0 x16 (x16 mode)
• AMD B550 Chipset
• 1 x PCIe 3.0 x16 (x4 mode)
• 3 x PCIe 3.0 x1
• Armazenamento:
• 2 x M.2 slots e 6 x SATA 6Gb/s
• 3a Ger. AMD Ryzen™ :
• 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• AMD B550 Chipset :
• 1 x M.2_2 socket 3, com M key, suporte a dispositivo de armazenamento tipo 2242/2260/2280/22110 (modo SATA & PCIE 3.0 x 4)
• 6 x SATA 6Gb/s
• Suporta Raid 0, 1, 10
• LAN: Intel® I225-V 2.5Gb Ethernet e ASUS LANGuard
• Áudio: ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
• Portas USB:
• Traseiras ( Total 8 )
• 2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
• 2 x USB 2.0 port(s)
• Frontais ( Total 6 )
• 2 x USB 3.2 Gen 1
• 4 x USB 2.0
• Portas I/O Painel Traseiro:
• 1 x Intel® I225-V 2.5Gb Ethernet
• 1 x DisplayPort 1 x HDMI
• 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C®)
• 4 x USB 3.2 Gen 1
• 2 x USB 2.0 1 x Optical S/PDIF out
• 1 x BIOS FlashBack™ Button(s)
• 5 x Gold-plated audio jacks
• ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
• Conectores I/O Internas
• 1 x CPU Fan
• 1 x CPU OPT Fan
• 3 x Chassis Fan
• 1 x AIO_PUMP
• 1 x AAFP
• 2 x Aura RGB Strip Header
• 1 x Addressable Gen 2 header
• 1 x USB 3.2 Gen 1(up to 5Gbps) support additional 2 USB 3.2 Gen 1
• 2 x USB 2.0 support additional 4 USB 2.0
• 1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA & PCIe 4.0 x4 mode)
• 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
• 6 x SATA 6Gb/s
• 1 x Thunderbolt header
• 1 x 24-pin EATX Power
• 1 x 8-pin ATX 12V Power
• 1 x 4-pin ATX 12V Power
• 1 x System panel
• 1 x Thermal sensor
• 1 x Clear CMOS jumper
• Dimensões: ATX, 30.5 cm x 24.4 cm
